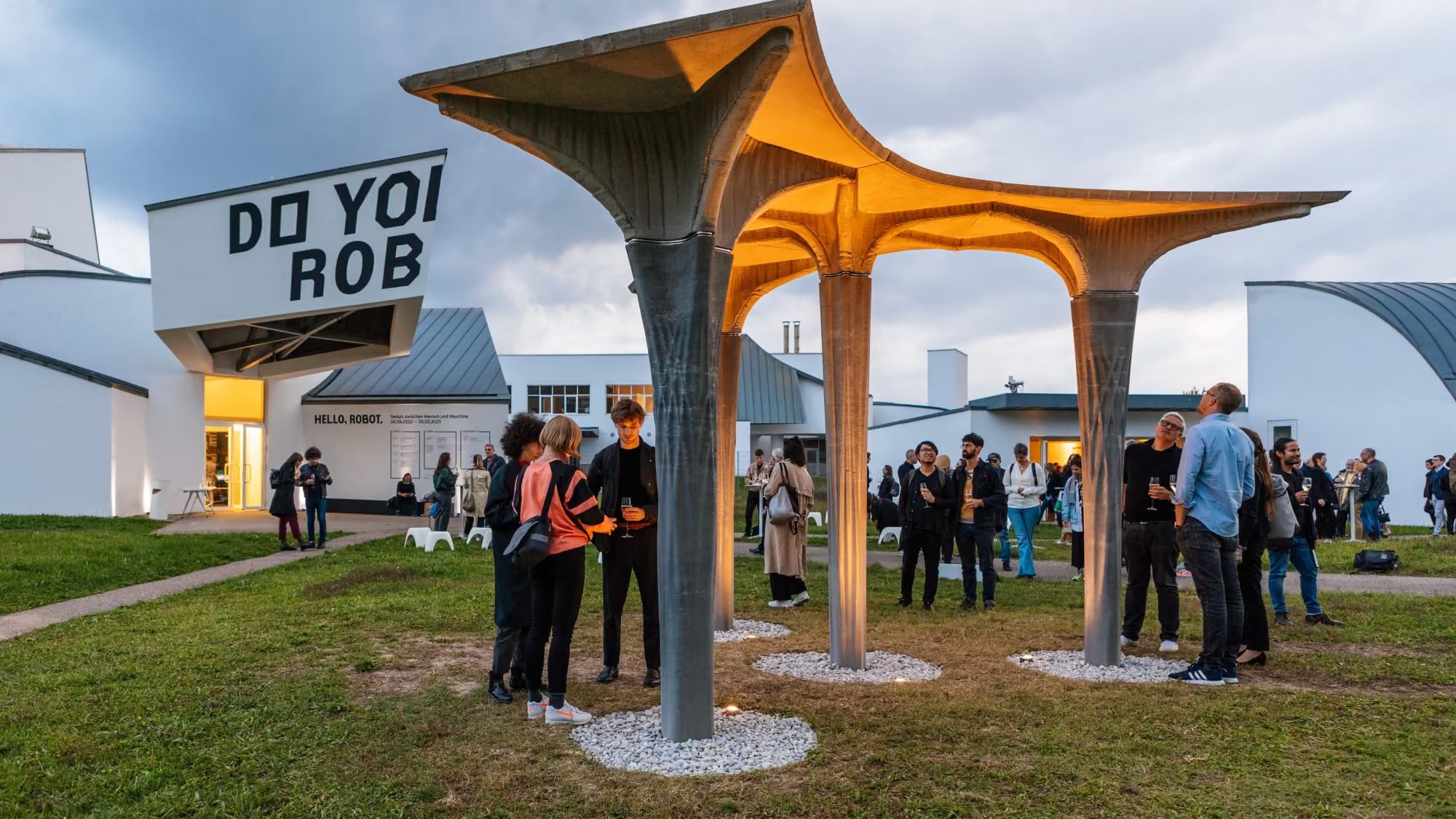

Visitors at dusk around a pavilion of slender concrete columns and thin slabs lit warm from below, in front of the Vitra Design Museum
Photo: Erika Marthins

Eggshell Pavilion

Vitra Design Campus, Weil am Rhein, Germany · 2022 · Gramazio Kohler Research and MAS ETH DFAB, ETH Zurich

Four concrete columns and four ribbed slabs, cast in thin formwork that a robot 3D printed from recycled plastic.

The Eggshell Pavilion was designed and built in ten weeks by students of the Master of Advanced Studies in Architecture and Digital Fabrication. Each column and slab was cast in a thin formwork, robotically 3D printed from plastic, that held the fresh concrete as it set: an approach for building complex concrete shapes without conventional moulds. The pavilion was exhibited for six months at the Vitra Design Campus.

How COMPAS was used

The printing toolpaths for the formwork were generated with COMPAS Slicer, the open-source COMPAS package for slicing geometry into robotic print paths, and sent to the robotic arm with COMPAS RRC.

More made with COMPAS

  • A leaf-shaped lattice of timber beams arching over a community garden at golden hour, with lavender in the foreground and apartment buildings behind

    HARDLEAF

    Quartiergarten Hard, Zürich, Switzerland · 2026

    A leaf-shaped timber pavilion of 182 beams for a neighbourhood garden, designed and built by students, with kiwi plants growing over it for shade.

    Coding Architecture II, Gramazio Kohler Research, ETH Zurich · Photo: lisdem

  • A robot arm on a truss in front of a large suspended net sprayed with soil and sprouting grass, while a person in a white overall draws in sand

    Sybil

    Ars Electronica, Linz, Austria · 2026

    Visitors draw in sand, and a robot turns their traces into toolpaths, spraying soil and seeds onto a suspended net that grows into a living surface.

    Architecture and Human Augmentation, ETH Zurich · Photo: Zita Oberwalder

  • A visitor stands inside a sweeping, curved landscape of overlapping wooden shingles, seen through translucent hanging curtains

    Dafne's Skin

    Triennale Milano, Milan, Italy · 2025

    An enlarged fragment of skin from the myth of Dafne, made of wooden tiles, whose surface slowly changes under a robotically applied living patina.

    Architecture and Human Augmentation, ETH Zurich, and MAEID · Photo: Zita Oberwalder

  • Looking up into a cupola of ruffled, translucent plastic layers in pink, blue and purple, printed as hollow tubular beads

    Gelateria Mulegns

    Mulegns, Switzerland · 2025

    An ice cream shop next to Tor Alva, under a cupola robotically printed from recycled plastic: 250 square metres that weigh less than a tonne.

    MAS ETH DFAB and Digital Building Technologies, ETH Zurich · Photo: Stefan Kaiser
